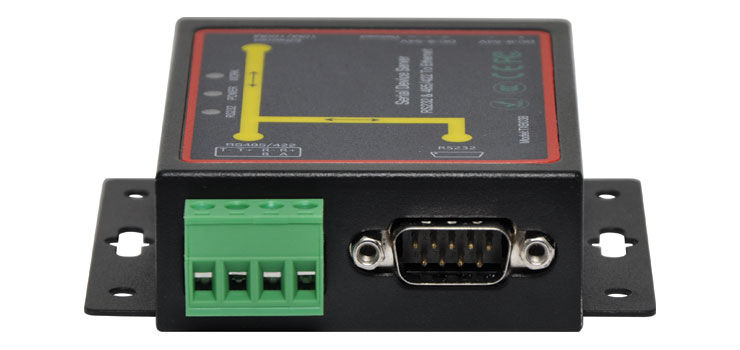

This serial to ethernet converter allows you to easily send serial RS232/422/485 over ethernet for controlling equipment over longer distances than traditional serial cables. This device can be controlled and set up remotely using a handy web based interface.

9-54V DC power supply required. We recommend the M9273B 12V 0.5A power adapter.

Please Note: Plug pack not included.

Features
Supports auto-MDI/MDIX
Supports TCP/IP server, TCP/IP Client & UDP
Baud rate 300bps-230400bps
Supports Modbus RTU
Reload function
RS485 support full duplex and half duplex
Supports VSPE software.

Chipset: IP210
Ports: 1 port 10/100M Auto MDI-MDIX RJ45，1port RS232, 1port RS485/422
Standards: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az
Network: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
Data rate: 10/100M
Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicators: Link/Act, Power, System, TX/RX
Baud rate: 110bps~256000bps
Operation modes: TCP Server, TCP Client, UDP
Dimension: 86W x 84H x 25Dmm
Power Input: 9V-54V DC
Power Consumption: Max 1.8W
Operating Temperature: -10°C to 55°C
Relative Humidity: 10%-90% (non-condensing)

Device Defaults
ID: admin
Password: system
IP address: 192.168.2.1
Operation mode: TCP server
Transmission Mode: RS232
Baud rate: 57600bps
UART parameters: 57600, 8, N, 1
Local port TCP 23, UDP 21
