Description

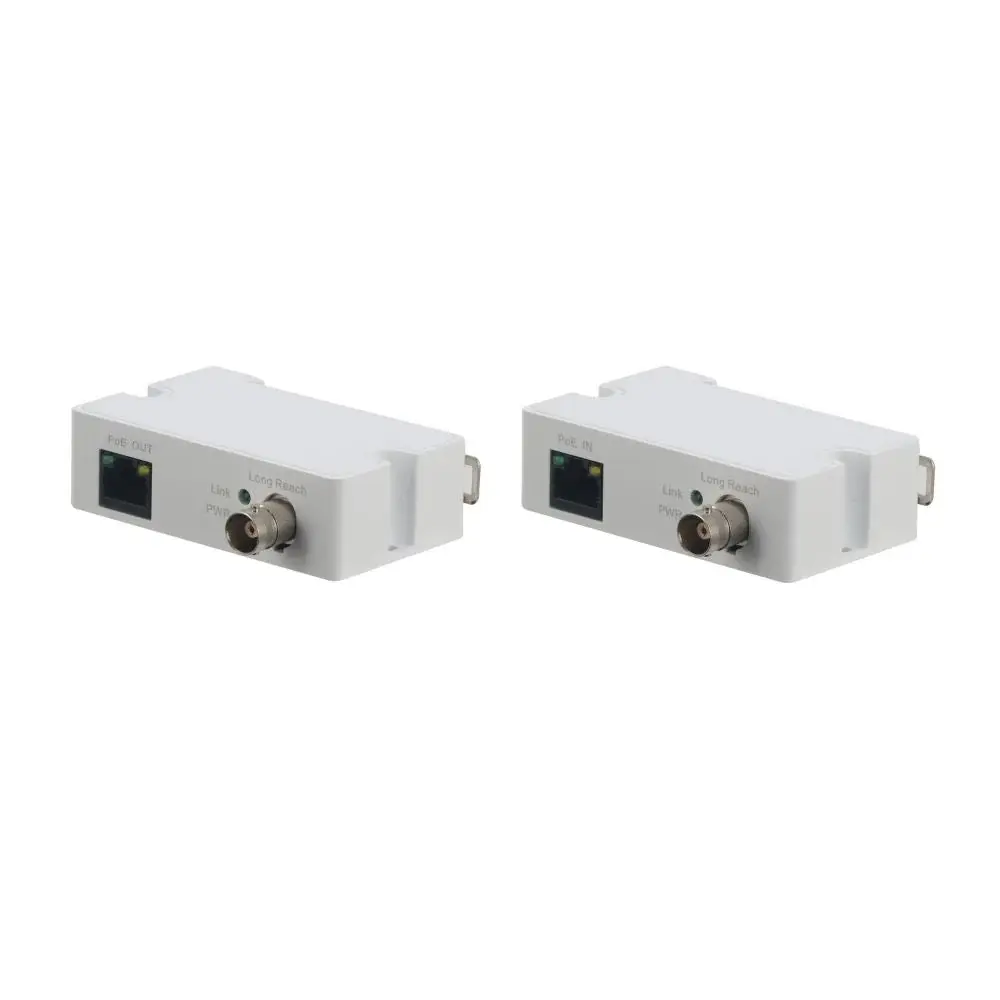

Dahua Single-Port Long Reach Ethernet over Coax Extender - KIT-DH-LR1002-1ET/LR1002-1EC
Features
- Supports IEEE802.3, IEEE802.3u standards
- Supports IEEE802.3af and IEEE802.3at power supply standards
- Port: 1*RJ45 10/100Mbps, 1*BNC
- Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
- Supports MDI/MDIX self-adaption
- Supports long-range power supply transmission via coaxial cable
Dahua Single-Port Long Reach Ethernet over Coax Extender - KIT
SKU: KIT-DH-LR1002-1ET/LR1002-1EC
$99.00Price
Tech Specs
Dahua Single-Port Long Reach Ethernet over Coax Extender - KIT-DH-LR1002-1ET/LR1002-1EC Technical Specification Model LR1002-1ET/LR1002-1EC Function Port 1*10/100 Mbps Base-TX 1*BNC Power Consumption <2W Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps PoE Protocol IEEE802.3af, IEEE802.3at Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x Lightning Protection Common Mode 4KV Differential Mode 2KV Operating Temperature -30°C-65°C Operating Humidity 5%~95% Weight 61g Dimension (W×D×H) 79mm×52mm×23mm Take RG59 as an example (Max. DC resistance < 5.0Ω/100m) LR1002-1ET/LR1002-1EC Supports with 48V/Supports with 53V 100m Bandwidth (Mbps)/100/100 Load Capacity (W)/21/25.5 200m Bandwidth (Mbps)/100/100 Load Capacity (W)/15/24 300m Bandwidth (Mbps)/100/100 Load Capacity (W)/11/19 400m Bandwidth (Mbps)/100/100 Load Capacity (W)/9/16 500m Bandwidth (Mbps)/10/10 Load Capacity (W)/7/13 800m Bandwidth (Mbps)/10/10 Load Capacity (W)/5/8 1000m Bandwidth (Mbps)/10/10 Load Capacity (W)/4/6
